Wellmate

The WM-Series offers features and benefits steel tanks just can’t match. They are guaranteed to perform better and last longer. WM-Series tanks are the ideal choice for new and replacement residential installations and pressure boosting applications.

Applications

  • Residential
  • Light commercial
  • Pressure boosting

WellMate Advantages

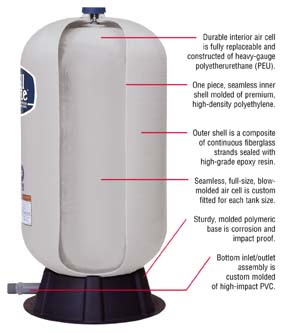

  • Corrosion-proof composite construction - From the high density polyethylene inner liner to the fiberglass-wound and epoxy resin-sealed outer shell, WM-Series tanks contain no steel. So they can’t rust.
  • Little or no maintenance - Because they contain no steel, there is no paint to scratch or touch up.
  • Longer life, greater flexibility -Our unique air cell offers longer life than the bladders or diaphragms in steel tanks. WM-Series tanks can be installed with a wider range of pressure settings, so you can select the system pressure you want. What’s more, the bottom inlet/outlet assembly is pre-installed and comes with system connections to save time and money.
  • Light weight - WellMate tanks are quicker, easier and less costly to install than steel tanks.
  • NSF and/or FDA listed materials - The complete assembly meets stringent US requirements for water components. WellMate tanks are environmentally safe, 100% lead-free. They will not introduce undesirable chemicals or elements into your customers’ water.
  • Replaceable air cell - Easy to service in the field.
  • Factory-backed warranty - WellMate backs its pressure tanks with a complete warranty, giving your customers the confidence and peace of mind that can turn them into buyers.

Specifications

WM-Series Performance Data

Model Number Capacity gal/liter Max. Operating Pressure psi / kPa / bar Drawdown 30/50 Setting**gal/liter Diameter* inch / cm Overall Height* inch / cm Height* inlet/outlet to floor inch /cm System Connection Assembly Weight* lb / kg
WM-6 19.8 / 75 100 / 700 / 7.0 5.9 / 22.5 16 / 41 32 / 81 1¾ / 4.4 1" male NPT 17.75 / 8.1
WM-9 29.5 / 112 100 / 700 / 7.0 8.9 / 33.5 16 / 41 44 / 112 1¾ / 4.4 1" male NPT 24.75 / 11.2
WM-14WB 47.1 / 178 125 / 862 / 8.6 14.1 / 53.5 21 / 53 41¼ / 105 2¼ / 5.7 1¼" male NPT 43 / 19.5
WM-20WB 60.0 / 227 125 /862 / 8.6 18.0 / 68.1 24 / 61 41½ / 105 2¼ / 5.7 1¼" male NPT 50 / 22.7
WM-25WB 86.7 / 328 125 / 862 / 8.6 26.0 / 98.5 24 / 61 55¼ / 140 2¼ / 5.7 1¼" male NPT 72.75 / 33.0
WM-35WB 119.7 / 453 125 / 862 / 8.6 35.9 / 135.9 21 / 53 74¼ / 189 2¼ / 5.7 1¼" male NPT 95 / 43.1
WM-60 200.0/757 125/862/8.6 60.0/227.1 30/76 80/203 6/15.2 2”NPT 95/43.1
WM-80 270.0/1022 125/862/8.6 81.0/306.6 36/91 80/206 7/17.8 2”NPT 95/43.1

Note: Maximum external operating temperature 120°F (50°C). Maximum internal operating temperature 100°F (38°C). Minimum operating temperature 40°F (4°C).

*Diameter, height and weight may vary slightly without notice.

** In keeping with current industry standards, drawdown factors are based on Boyle’s law. Actual drawdowns will vary depending upon system variables, including the accuracy and operation of the pressure switch and gauge and operating temperature of the system
