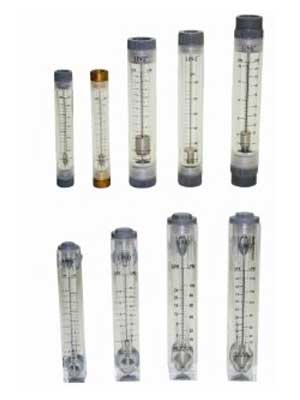

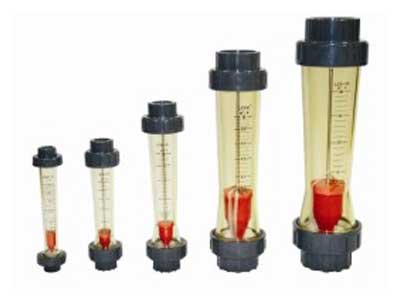

ROTAMETERS

TECHNICAL SPECIFICATIONS

  • Meter body : polycarbonate / acrylic / polysulfone
  • Float: PVDF / SS
  • Guide Rod: SS 316
  • O Rings: EPDM / SILICON
  • End Connectors : ABS
  • Pressure Limit: 10 Bar
  • Temperature Limit: 650 C

FEATURES

  • High resistance to acids & alkalies
  • Capable of withstanding high temperature
  • Economical and durable
  • Accuracy + 4% of FSD
  • Complete range from 15 mm to 65 mm end connections
  • Flow ranges upto 60 m3/hr
  • Available in inline and panel mount models
  • Permanent dual silk scale printing for optimum reading
